Structure

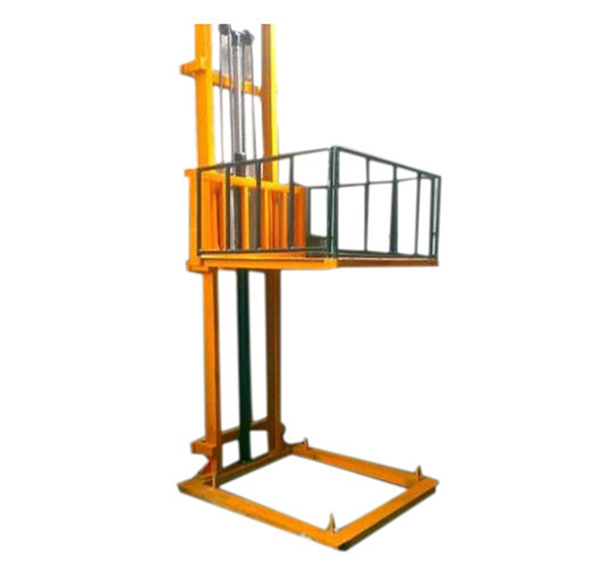

Simplex design single mast structure made from C" channel section supported By heavy-duty deep grooved guide rollers forks lifted by means of 2 nos. double chain & Pulley design. Hydraulic unit no. vertical mounted, single acting honed hydraulic cylinder With hard chrome plated piston
Description
Specifications
| Model | DE-107 |
|---|---|
| Capacity (KG) | 500 TO 1500 |
| Platform Size (W*L) (MM) | 800 TO 1500 |
| Mast | Single |
| Platform height Min. Height (MM) | 300 TO 2100 |
| Lift Height (MM) | 2000 TO 11000 |
| Power Pack | Hydraulic AC |
| Lift/Lower Mode | AC Operated Hydraulic |
| Levels | G+2 |
| Entry/Exit | Single Side (opp. Mast) |
| Lip | Optional at extra cost |
| Control Panel | CP at bottom & Top- stages |
| Control Panel - Auto Mode | Manual/Auto |
| AC Motor for Powerpack | Single phase / three phase |
| Hydraulics | Safety Valve, Pressure Relief Valve, Control Valve, Solenoid Valve, Pressure Gauge, Oil Level Indicator, Monoblock, Brether, Pump |
| Platform Doors, Side Shields | 2 Side, 900 mm rails, one swing gate with mechanical lock |
| Doors on Door | 3 nos - Sliding Grills G+2 |
| Limit Switch | Provided for Lift cabin |
| Door Interlocks | Interlocks for Grill Door |
