Electric Stacker

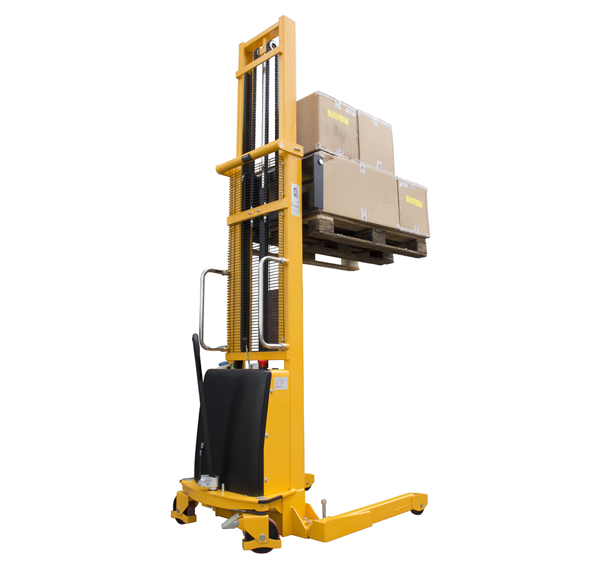

Semi Electric Stacker DE-109 C

Dakshesh semi electric stacker with 500 to 1500 kg capacity ensures the reliable quality and best feeling of operation.

Main Specs

  • Lifting Capacity : 500 to 1500kg
  • Lifting Height : 1000 to 3000 mm
  • Lowered Height of Fork : 85 mm
  • Fork Length : 1150 mm
  • Fork width : 550 mm
  • Wheel type : PU/Nylon
  • Adjustable Fork over fork
  • Wheel lock
  • Up/down electric
  • Moving manual

Specifications

Model No. DE-109 A-500 DE-109 A-1000 DE-109 A-1500
Capacity (KG) 500 1000 1500
Lifting Height (MM) 1000 to 3000 1000 to 3000 1000 to 3000
Mast Type Depend on height Depend on height Depend on height
Lowered Height of Fork (MM) 90 90 90
Fork Outer Distance (MM) 550 550 550
Fork Length (MM) 1150 1150 1150
Overall Width (MM) 760 760 760
Turning Radius (MM) 1600 1600 1600
Wheel (Drive / Load) Type PU / Nylon PU / Nylon PU / Nylon
Size of Steering Wheel (MM) ø180*50 ø180*50 ø180*50
Size of Loading Wheel (MM) ø80*50 ø80*50 ø80*50
