Dakshesh Engineers

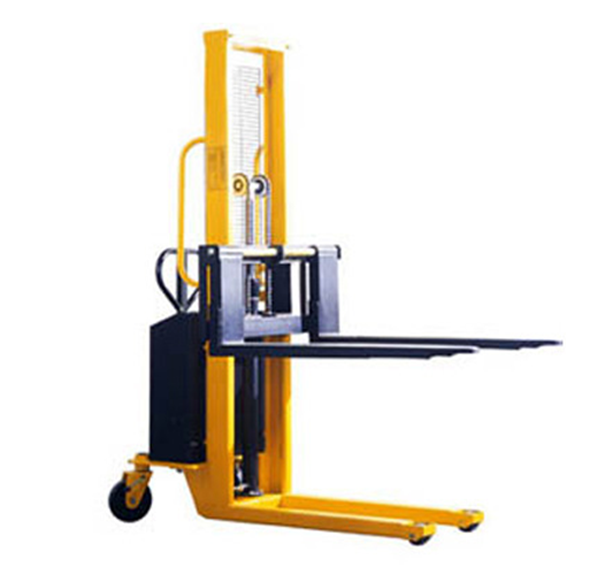

Semi Battery Stacker DE-109 A

Dakshesh power drive semi battery operated stacker with 1500 kg capacity is ideal, simple & effective solution for stacking & vertical storage spacing warehouse and used in widest range of applications.

Main Specs

Capacity : 500 to 1500kg
Lifting Height : 1000 to 3000 mm
Lowered Height : 85 mm
Fork Length : 1150 mm
Turning Radius : 1390 mm
Battery Voltage : 24/75 V/ah
Manually drive
Non adjustable/ Adjustable Forks
C Profile Mast

Note : We Manufacture Our All Product As Per Customer Requirement/Drawing.

Features

Floating frame structure with advance mounting type
Detachable design with high accuracy & better hardness
Better vision for operator
Better protection to pallet load

Easier maintenance
High accuracy
Wider rider platform for more space of standing
Side slidable battery box

Specifications

Model No.	DE-109 A-500	DE-109 A-1000	DE-109 A-1500
Capacity (KG)	500	1000	1500
Lifting Height (MM)	1000 to 3000	1000 to 3000	1000 to 3000
Mast Type	Depend on height	Depend on height	Depend on height
Lowered Height of Fork (MM)	90	90	90
Fork Outer Distance (MM)	550	550	550
Fork Length (MM)	1150	1150	1150
Overall Width (MM)	760	760	760
Turning Radius (MM)	1600	1600	1600
Wheel (Drive / Load) Type	PU / Nylon	PU / Nylon	PU / Nylon
Size of Steering Wheel (MM)	ø180*50	ø180*50	ø180*50
Size of Loading Wheel (MM)	ø80*50	ø80*50	ø80*50
